Frequency converters
EFC3610
Features & Benefits
- Power range: 0.4 … 22 kW
- Built-in brake chopper and net filter
- Control technology: V/f
- Operation of asynchronous motors
- Expansion option thanks to I/O and fieldbus modules
- Use in HD mode (heavy duty) and ND mode (normal duty)
- Integrated operator panel for quick and easy commissioning
- Degree of protection: IP20
Type
Name
Downloads
EFC 3610 & 5610
Frequency converters
EFC5610
Features & Benefits
- Power range: 0.4 … 160 kW
- Built-in brake chopper (up to 22 kW) and net filter
- Control technology: V/f, SVC, FOC
- Safety technology: Safe Torque Off (STO)
- Expansion option thanks to I/O and fieldbus modules
- Operation of asynchronous and synchronous motors
- Use in HD mode (heavy duty) and
ND mode (normal duty) - Integrated operator panel for quick and easy
commissioning - Degree of protection: IP20
Type
Name
Downloads
EFC 3610 & 5610
VFC 3210
Compact design with safety, reliability and easy operation.
Features & Benefits
- Smart & Delicate
►Nearly 30 % decrease in depth than 3610 to better adjust
to customer installation requirements.
►A super mini type in compact design.
►Side by side mounting. - Superior performance
►The high starting torque of 150 % 3 Hz and 100 % Hz 1.5.
►Over-excitation control to reduce the braking time.
►The capacity overload of 150 % 60 s.
►Modbus RTU is standard.
►PC software and firmware updates (via Mini-USB port). - Easy to operate
►Built-in LED operating panel.
►Easy to operate and maintenance, removable fan, free
cooling (not more than 1.5 kW).
►Structured parameter group for convenient commissioning.
►Automatic speed limiting and capture. - Stable & Reliable
►Systematic safety standard and reliability test system.
►Complete converter protection (phase failure,
interphase short circuit, the earthing short circuit,overcurrent, overvoltage, under-voltage, overload,overheat and overheating protection for motors).
►Reinforced coating of circuit boards for dust-proof
and anti-corrosion.
Type
Name
Downloads
Rexroth VFC & EFC Frequency Converter Brochure
VFC 3610
Economic Machinery Drive
Features & Benefits
- Designed to meet emerging market requirements: The modular design makes it adaptable to specific customer’s requirements
- Robust design to withstand harsh environments
- Reliable quality
►No capacitors in the cooling channel
►Coated circuit boards
►Multiple protection functions
►CE certification
Type
Name
Downloads
VFC 3610 Brochure

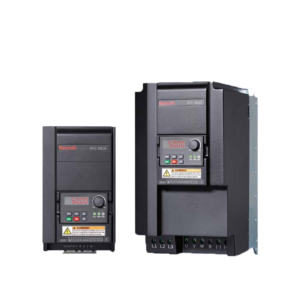

VFC 5610
High Performance Machinery Drive
Features & Benefits
- Designed to meet emerging market requirements: The modular design makes it adaptable to specific customer’s requirements
- Robust design to withstand harsh environments
- Compact design
►Significantly reduced housing size.
►Side by side mounting capability.
►DIN rail mounting (up to 7.5 kW). - Smart cooling concept
►Fanless cooling up to 0.75 kW.
►Above 0.75 kW the fan can be changed without tools.
►Temperature dependent fan control.
►Separate cooling channel, free of capacitors, allows for
flexible cooling arrangements.
►Through wall mounting. - Easy to use
►Quick start parameter set.
►Removable panel, supports remote operation and parameter
copy.
►LED dust cover, 5 digit LED panel, multi-language LCD panel.
►Quickconnectors fortheI/Oterminals, support convenient installation and maintenance.
►Communication and I/O extension cards.
►Integrated brake chopper. - Powerful
►Torque control without external encoder, in SVC control mode.
►Power loss ride through.
►Low frequency oscillation suppression.
►Speed tracing, for smooth catching and restarting of a
running fan. - Versatile
►Counter function.
►Energy savings calculator.
►Pulse input (50 kHz) and pulse output (32 kHz).
►Over excitation braking, to reduce braking times up to 50 %.
►24 V auxiliary power output for external devices.
►Build in Modbus RTU, option cards for PROFIBUS DP and
CANopen.
►Pc software and firmware updates (simple connection via
Mini-USB port). - Reliable quality
►No capacitors in thecooling channel
►Coated circuit boards
►Multiple protection functions
►CEcertification
Type
Name
Downloads
VFC 5610
